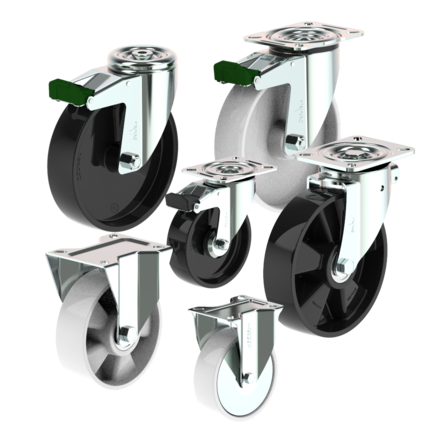

Nylon Wheel castor
Explore the versatility of Nylon Wheel Castors in retail, industrial, and healthcare settings. Discover the benefits of using nylon material, including high load capacity, abrasion resistance, and corrosion resistance. Learn about LIV Systems, a top Europ
-
Swivel castor + solid polyamide wheel Ø160 x W50mm for 400kg
ID 31774: Castor overall height 200 mm | 4 mounting holes with distance 105x80 mm | Wheel ...
-
-
Transport wheel with solid polyamide wheel Ø125 x W38mm for 250kg
ID 42744:standard Wheel with ball bearing and solid polyamide wheel with hardness 70±5 S...
-
-
Swivel castor + solid polyamide wheel Ø200 x W50mm for 300kg
ID 66732: Castor overall height 232 mm | 4 mounting holes with distance 105x80 mm | Wheel ...
-
-
Swivel castor + solid polyamide wheel Ø125 x W38mm for 250kg
ID 67161: Castor overall height 155 mm | 4 mounting holes with distance 80x60 mm | Wheel w...
-
-
Swivel castor + solid polyamide wheel Ø125 x W38mm for 250kg
ID 34414: Castor overall height 155 mm | 4 mounting holes with distance #$% mm | Wheel wit...
-
-
Swivel castor with brake + solid polyamide wheel Ø100 x W35mm for 200kg
ID 34634: Castor overall height 128 mm | 4 mounting holes with distance #$% mm | Wheel wit...
-
-
Swivel castor with brake + solid polyamide wheel Ø125 x W38mm for 250kg
ID 34635: Castor overall height 155 mm | 4 mounting holes with distance #$% mm | Wheel wit...
-
-
Swivel castor with brake + solid polyamide wheel Ø150 x W46mm for 300kg
ID 34734: Castor overall height 180 mm | 4 mounting holes with distance #$% mm | Wheel wit...
-
-
Swivel castor + solid polyamide wheel Ø80 x W35mm for 150kg
ID 34455: Castor overall height 106 mm | 4 mounting holes with distance #$% mm | Wheel wit...
-
-
Fixed castor + solid polyamide wheel Ø150 x W46mm for 300kg
ID 67017: Castor overall height 180 mm | 4 mounting holes with distance 105x80 mm | Wheel ...
-
-
Swivel castor + solid polyamide wheel Ø200 x W50mm for 500kg
ID 31793: Castor overall height 240 mm | 4 mounting holes with distance 105x80 mm | Wheel ...
-
-
- Short delivery times
- View our Factory
- We continuously increase the quality
-
Fixed castor + solid polyamide wheel Ø160 x W50mm for 400kg
ID 31775: Castor overall height 200 mm | 4 mounting holes with distance 105x80 mm | Wheel ...
-
-
Fixed castor + solid polyamide wheel Ø200 x W50mm for 500kg
ID 22830: Castor overall height 240 mm | 4 mounting holes with distance 105x80 mm | Wheel ...
-
-
Transport wheel with solid polyamide wheel Ø160 x W50mm for 400kg
ID 35593:heavy duty Wheel with ball bearing and solid polyamide wheel with hardness 70±5 ...
-
-
Transport wheel with solid polyamide wheel Ø200 x W50mm for 500kg
ID 35603:heavy duty Wheel with ball bearing and solid polyamide wheel with hardness 70±5 ...
-
-
Swivel castor + solid polyamide wheel Ø160 x W50mm for 400kg
ID 55381: Castor overall height 200 mm | 4 mounting holes with distance 105x80 mm | Wheel ...
-
-
Swivel castor + solid polyamide wheel Ø200 x W50mm for 500kg
ID 56583: Castor overall height 240 mm | 4 mounting holes with distance 105x80 mm | Wheel ...
-
-
Transport wheel with solid polyamide wheel Ø100 x W35mm for 200kg
ID 66714:standard Wheel with plain bearing and solid polyamide wheel with hardness 70±5 ...
-
-
Transport wheel with solid polyamide wheel Ø200 x W50mm for 300kg
ID 66712:standard Wheel with plain bearing and solid polyamide wheel with hardness 70±5 ...
-
-
Transport wheel with solid polyamide wheel Ø150 x W46mm for 300kg
ID 66706:standard Wheel with roller bearing and solid polyamide wheel with hardness 70±5 ...
-

Nylon Wheel Castors: Applications and Advantages
Applications in Various Industries:
- Retail Business: Nylon wheel castors are commonly used in the retail industry, especially in supermarkets and stores. They are incorporated into shopping carts, roll cage containers, and trolleys, allowing for smooth and effortless manoeuvrability of goods and products throughout the store.
- Industrial Settings: Industries such as manufacturing, logistics, and warehousing heavily rely on nylon wheel castors for material handling equipment like dollies, pallet jacks, and transport carts. They facilitate the movement of heavy loads, making it more efficient and less labour-intensive.
- Hospitality and Catering: In hotels, restaurants, and catering services, nylon castors are employed in serving carts, utility trolleys, and food transport containers. These castors provide mobility for the staff to efficiently serve customers and transport goods within the establishment.
- Medical and Healthcare: Medical equipment like hospital beds, carts, and stretchers often use nylon wheel castors. The smooth and quiet movement of these castors is crucial in medical settings where patient comfort and safety are essential.
Commercial and Technical Benefits of Nylon Material:
- High Load Capacity: Nylon is known for its high strength and load-bearing capacity, making it suitable for handling heavy loads without deformation.
- Abrasion Resistance: Nylon wheels exhibit excellent abrasion resistance, ensuring a longer lifespan even under continuous use on rough surfaces.
- Low Rolling Resistance: The low rolling resistance of nylon wheels reduces the effort required to move heavy objects, resulting in smoother operation.
- Corrosion Resistance: Nylon is not susceptible to corrosion, making it ideal for use in both indoor and outdoor environments.
- Noise Reduction: Nylon wheels produce minimal noise during movement, making them suitable for quiet environments like hospitals or libraries.
- Lightweight: Despite its robustness, nylon is a lightweight material, contributing to the overall weight reduction of the equipment.
Advantages of LIV Systems as a European Manufacturer:
- Experience and Expertise: LIV Systems has a wealth of experience in manufacturing high-quality castors and wheels, ensuring top-notch products.
- Customization Capability: LIV Systems can produce special products by combining injection-moulded synthetic material with welded and pressed metal products. This flexibility allows them to meet the unique requirements and design specifications of customers.
- High-Volume Production Capability: LIV Systems is adept at delivering high-volume products to original equipment (OE) customers, ensuring a stable supply chain.
- Electroplating and Powder Coating: LIV Systems offers options for electrically zinc-coated or powder-coated castors, enhancing corrosion resistance and durability.
Options for Standard Castors and Wheels at LIV Systems:
LIV Systems offers a wide range of standard castors and wheels, including various wheel diameters and fittings. Some of the options they provide are:
- Wheel Diameter: Options include 108 mm, 200 mm, 150 mm, 125 mm, 100 mm, and 80 mm wheel diameters.
- Fitting: LIV Systems offers plate fitting, bolt-hole fitting, and wheel hub options to cater to different mounting requirements.
- Bearing and Material: The castors come with options for plain bearings, roller bearings, and ball bearings, providing smooth and efficient movement.
- Type: LIV Systems provides fixed castors, swivel castors, and swivel castors with brakes to suit various applications and preferences.
Whether you need standard castors or have specific requirements, LIV Systems is well-equipped to deliver reliable and high-quality solutions. Their combination of expertise, customization capability, and commitment to high-volume production makes them a trusted choice for various industries.
