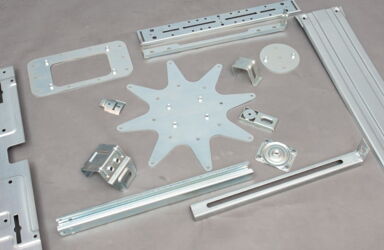

Technical OE products

Made according to your specifications

Choose LIV Systems, The All-In-One Metal Press Shop
Made according to your specifications

Your Premier European Supplier for technical OE products

Are you looking for a reliable partner to bring your technical OE products to life?

At LIV Systems, we invested 70 years of expertise, in-depth knowledge and modern machinery to deliver precision- engineered components, ensuring high-quality and cost-effective manufacturing.

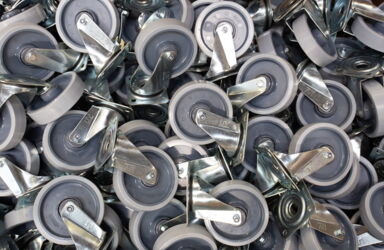

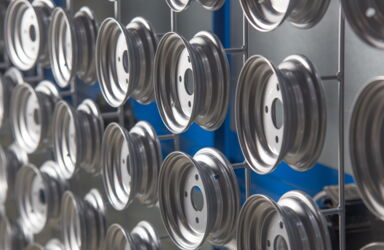

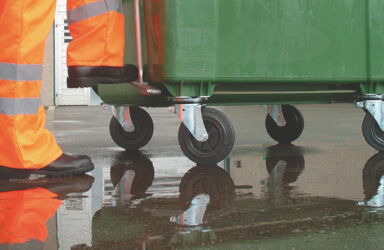

LIV Systems is renowned for making wheels, castor and mechanical parts that rotate and swivel under load while keeping friction and tolerances to a minimum but also increasing durability and decreasing wear and tear.

Our second unique ability is our in-house surface treatment department for electro zinc electroplating, passivation and powder coating.

With our integrated approach, we manage the most complex projects efficiently, ensuring scalable solutions that are cost-effective and crafted to your specifications.

With our expertise, your project is in safe hands.

Precision Deep Drawing Metal Sheet

We can form metals up to 8mm thick and 1000mm wide with exceptional accuracy.

Efficient Transfer Pressing

We offer efficient transfer pressing for materials up to 5mm thick and 600mm wide, ensuring high-volume production with consistent quality.

Long-Lasting Galvanic Zinc

Our long lasting galvanic zinc coating (10-15µm) provides robust corrosion resistance for up to 240h in salt spray chamber.

Durable Powder Coating

Our powder coating (single layer up to 100 µm) provides powerful corrosion resistance for more than 500h in salt spray chamber.

Get Advantage of Our Comprehensive Production & Advanced Technologies, Available Under One Roof

Our metal stamping and forming capabilities are used for both high-volume and custom production needs. We use advanced presses and tooling to shape metal parts with precision and consistency.

  • Classical Metal Stamping
  • Transfer and Servo Pressing
  • Deep Drawing

LIV Systems offers expert welding services, including spot, MIG, and MAG welding, to create strong and durable assemblies. Our skilled welders ensure every joint meets your high standards for strength and quality.

  • Circumferential welding
  • Manual welding

We provide comprehensive assembly services, bringing together components to create complete, ready-to-use products as per your needs. Our assembly processes are optimised for speed and accuracy, reducing time to deliver your products.

  • Automated assembly
  • Manual assembly

Get advantage of our injection moulding services to ensure delivery of high-quality plastic components with precise dimensions and excellent surface finishes. We support various thermoplastic materials, offering flexibility in design and application.

  • Thermoplastic injection moulding (PA, PP, PU, PE, TPE)
  • 2k injection moulding

LIV Systems offers excellent surface treatment and coating options, including powder coating and electroplating with quality passivation. These treatments enhance the durability and aesthetics of your metal parts, providing both functional and decorative finishes.

  • Zinc electroplating & passivation
  • Powder coating

We provide precision cutting and finishing services to achieve the exact dimensions and surface quality your projects require. From laser cutting to CNC machining, our processes ensure a flawless finish on every part.

  • Trimming
  • Rolling
  • Curling

Current Industry Problems

Meeting Industry Challenges in Everyday Life

  • Subpar equipment leading to frequent breakdowns
  • Costly repairs
  • Production delays
  • Higher logistical costs due to outsourcing key processes
  • Longer production times
  • Increased product costs

Let us help you

LIV Systems' Solutions

How LIV Systems Leads the Way

  • 100% In-house production
  • Enhanced Reliability
  • Increased Efficiency
  • Cost Savings
  • Integrated approach ensuring minimal downtime
  • Superior product quality

Partner with LIV Systems

Check Out Our Processes, Ignited by Our Contemporary Machines

Our processes offer enviable precision and performance across a wide range of metal forming and assembly techniques.

From complex deep drawing and high-volume stamping to advanced injection moulding and durable surface treatments, we deliver superior quality and reliability in every component we produce for you.

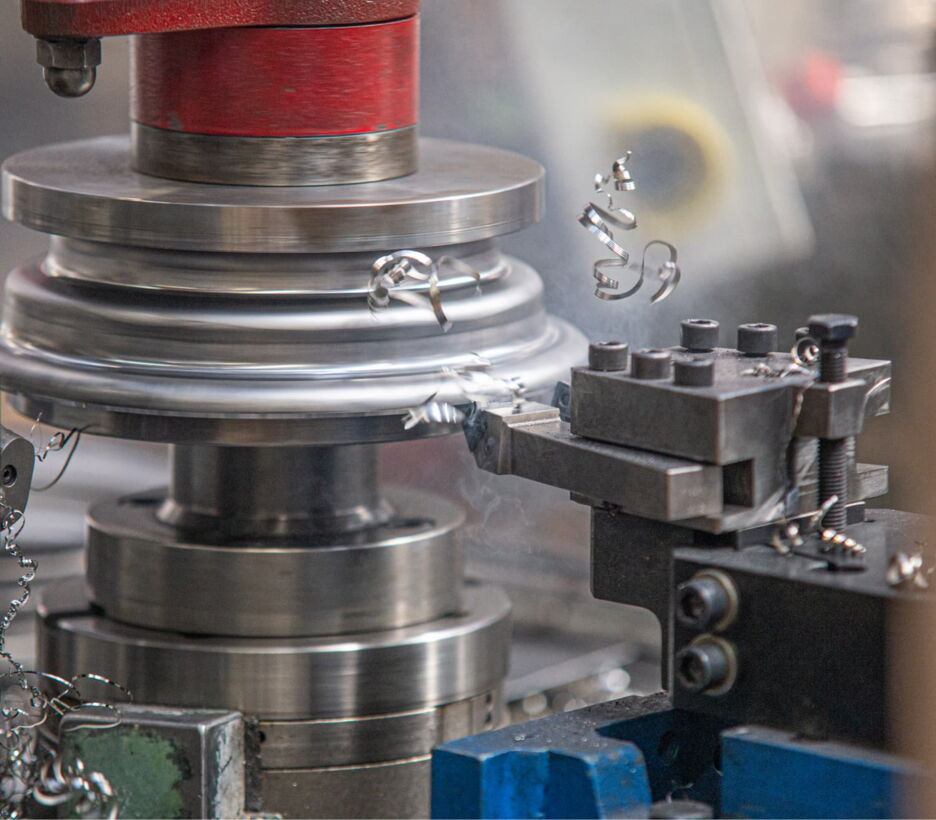

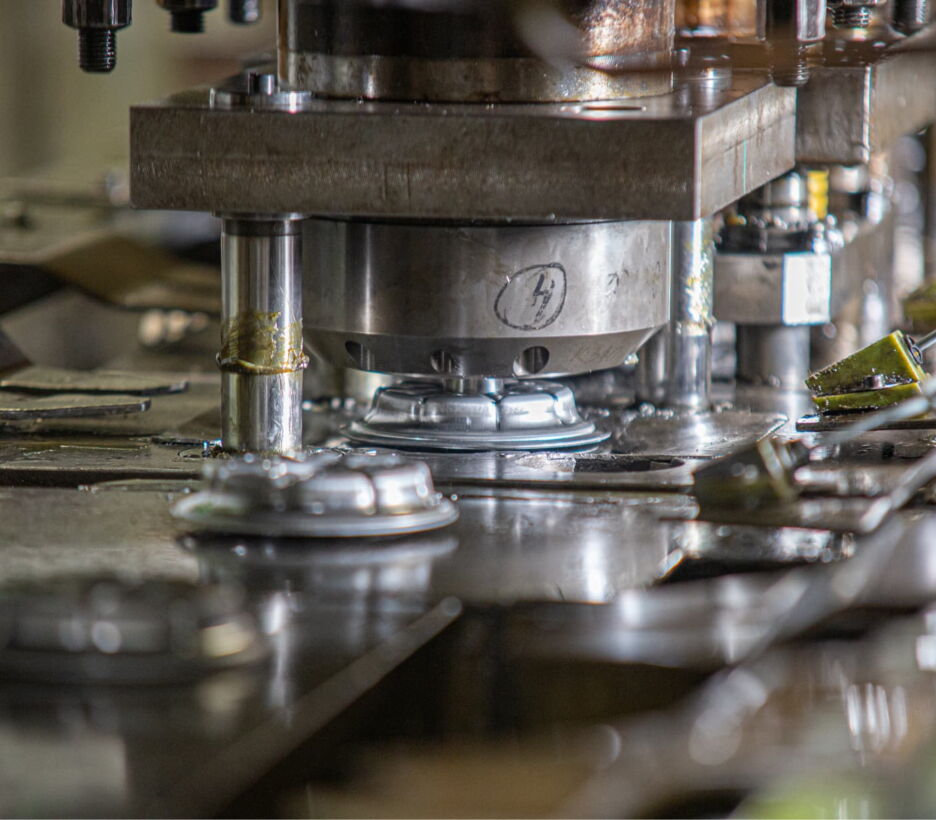

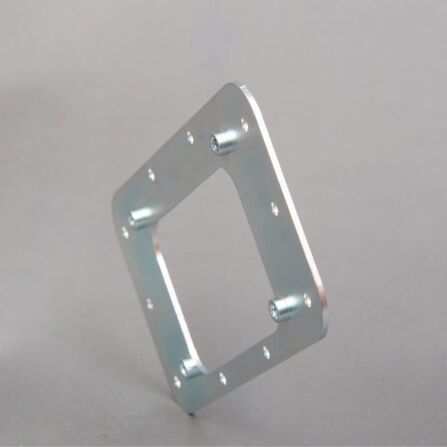

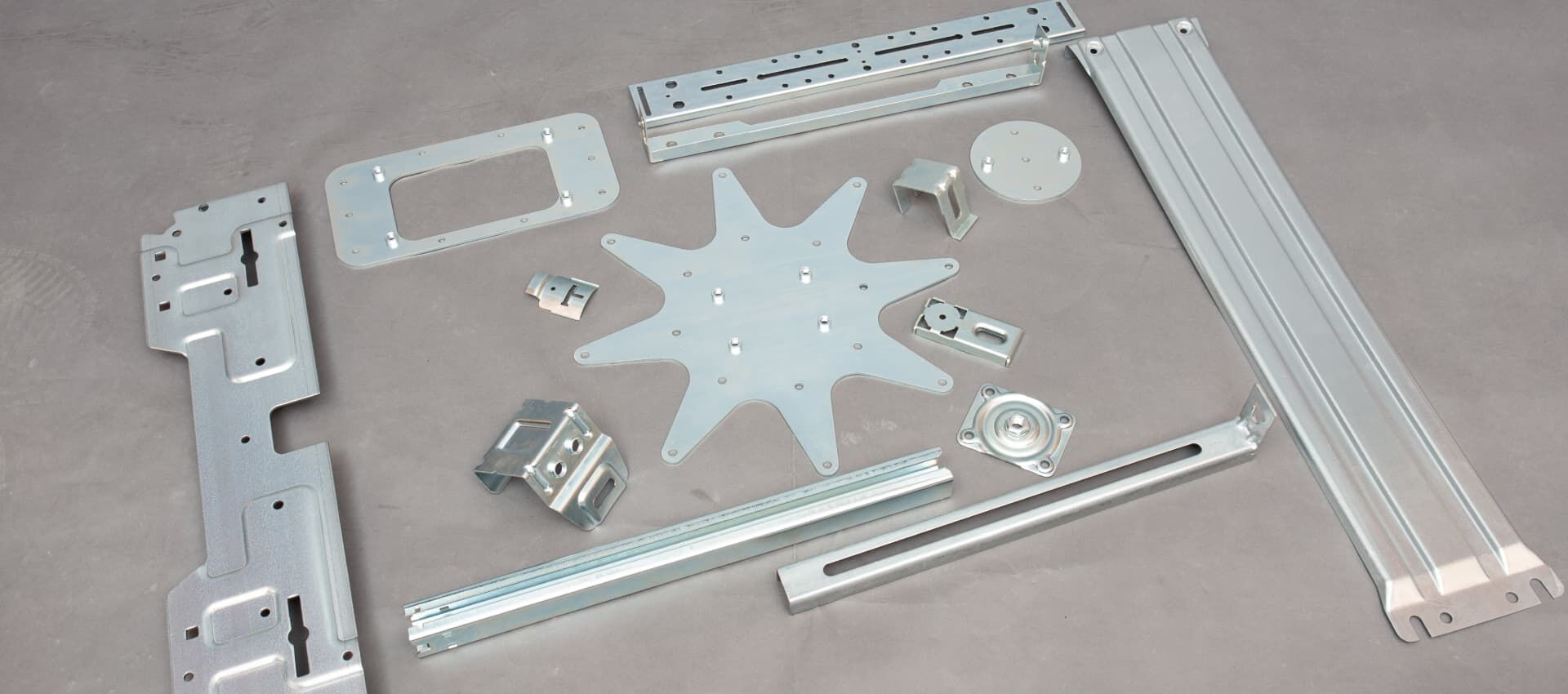

Classic Metal stamping and Forming

At LIV Systems, our metal stamping and forming process is a sophisticated operation that utilises precision dies and punches to shape flat metal sheets into specific shapes. We are equipped to handle a variety of complex techniques, including punching, embossing, flanging, and coining, making us ideal for high-volume, precision-driven production needs.

  • Maximum pressing power: 500T
  • Maximum stroke: 400 mm
  • Maximum material thickness: 7 mm
  • Maximum workpiece dimension: 1500x1000 mm

Transfer and Servo Pressing

Utilising the newest technology, our transfer pressing involves moving a workpiece through several press stations. This sequential approach allows complex shaping, precise dimensional control,maximum material efficiency  and efficient alteration, perfect for intricate component manufacturing.

Servo pressing represents a new trend in metal forming, allowing the production of challenging sheet metal products in a single line, offering greater flexibility in dimensioning and design.

  • Maximum pressing power: 630T
  • Maximum stroke: 420 mm transfer
  • Maximum material thickness: 8mm
  • Production pace: up to 38 pcs / minute

Deep drawing

Deep drawing is a metal forming process used to create hollow, seamless parts with a depth greater than their diameter. By drawing a sheet metal blank into a forming die with a punch. This technique involves applying a force to the metal sheet, causing it to stretch and form over the contours of a die, thus creating a deep, cup-shaped part.

  • Maximum pressing power:  630T
  • Maximum stroke:  1000 mm
  • Maximum workpiece dimension: 1200 mm x 1200 mm
  • Maximum material thickness: 10mm

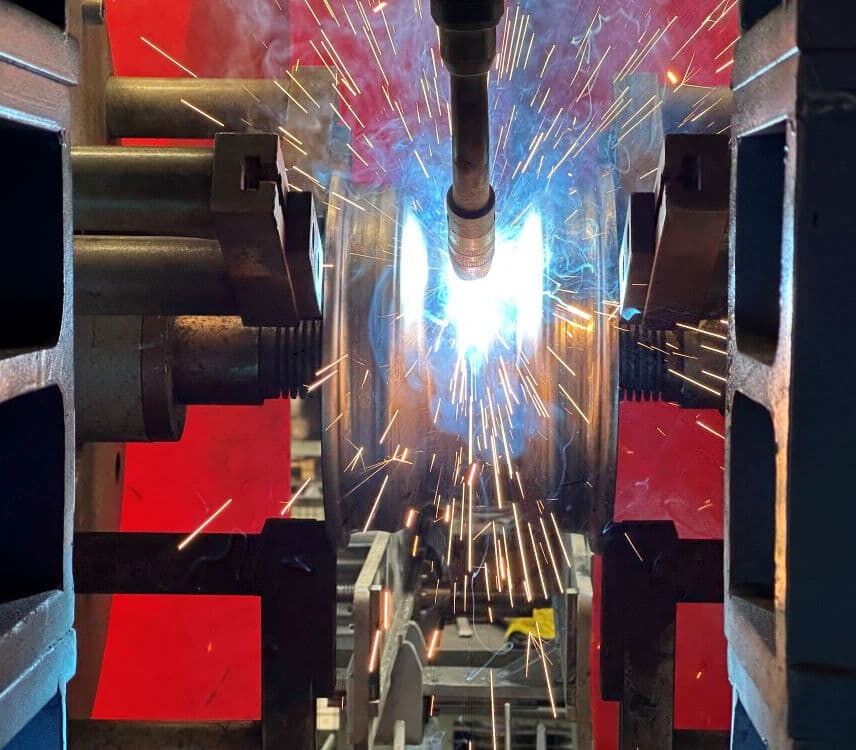

Circumferential and Manual Welding

We provide expert welding services using a range of advanced techniques to ensure strong, durable, and defect-free joints. Our certified professionals follow strict industry standards, guaranteeing the longevity and performance of your products.

  • Sincro Pulse Technology
  • Triple simultaneous welding
  • Circumferential welding machines: 4
  • Manual setups: 3

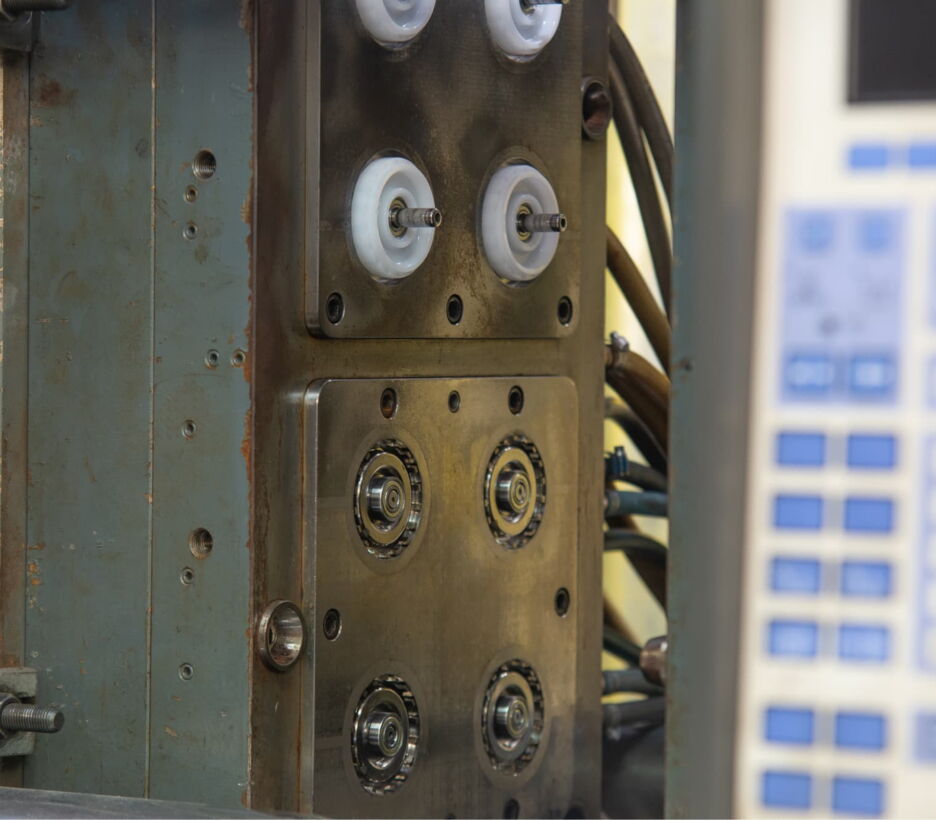

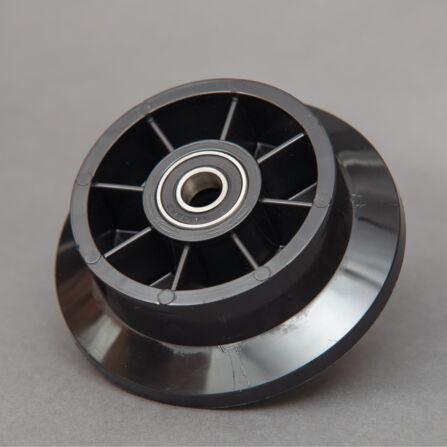

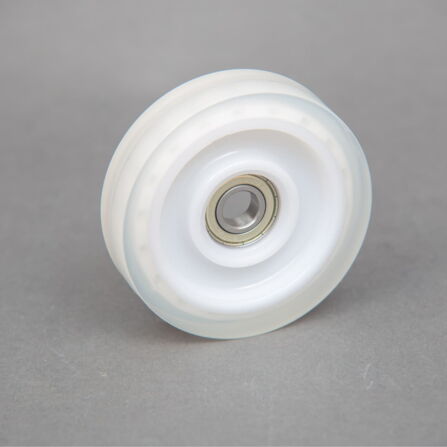

Thermoplastic injection moulding (PA, PP, PU, PE, TPE)

Specialising in various materials, our injection moulding process creates high-precision components with an excellent finish. We handle complex designs, ensuring that each part meets your desired specifications.

  • Injection moulding machines: 7
  • Maximum closing force: 350T
  • Advanced material options: conductive, heat resistant, fibreglass reinforced

2K injection moulding

For products requiring dual-material construction, our 2K injection moulding process efficiently combines 2 materials with different properties, colours, or hardness levels into a single end product. This approach not only enhances functionality but also reduces production costs.

  • Injection moulding machine: 350T

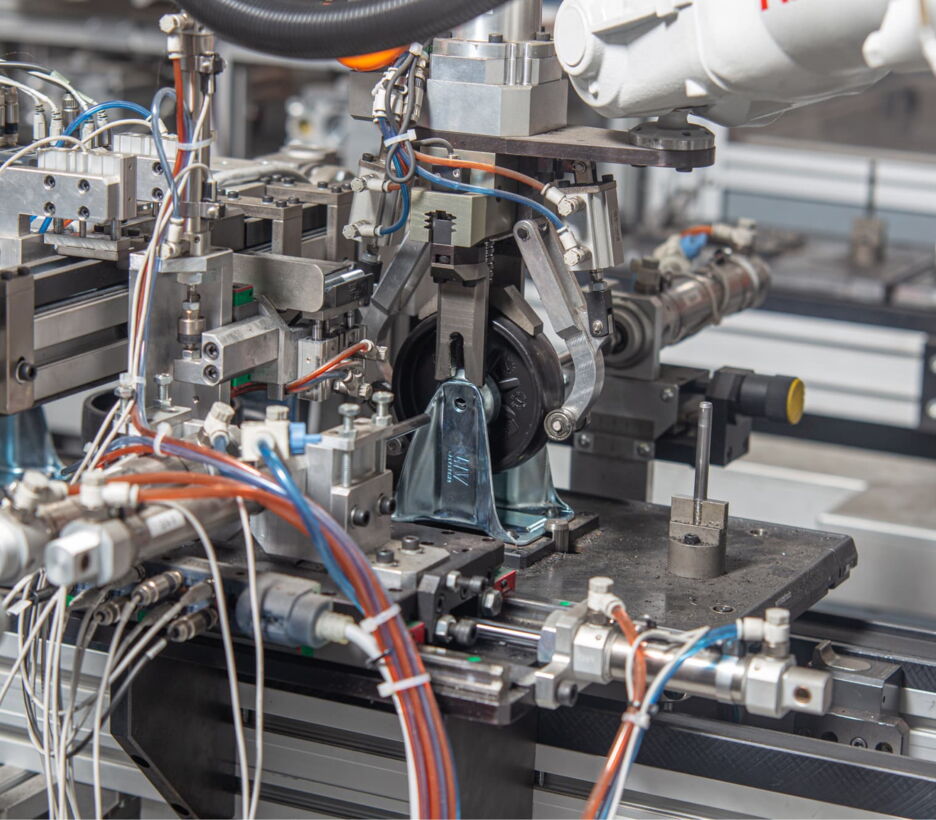

Automated and Manual Assembly

LIV Systems excels in both automated and manual assembly, ensuring that every part and sub-assembly is constructed with precision and reliability. Our rigorous protocols and experienced team guarantee high-quality, consistent performance in all final products.

  • Automatic assembly lines: 5
  • Manual assembly setups:  5

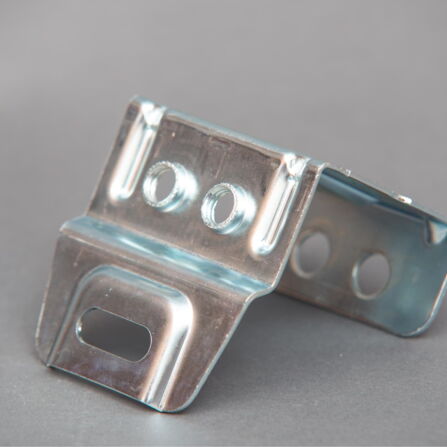

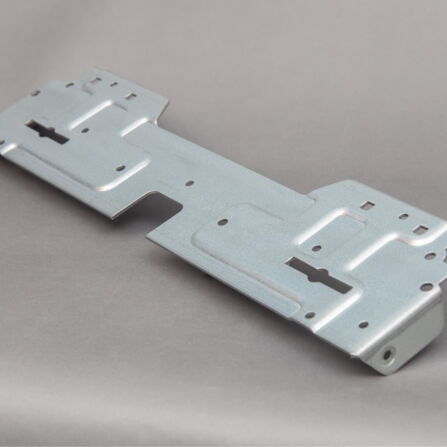

Zinc electroplating & Passivation

To ensure robust corrosion resistance to metal products, zinc plating and passivation combo is a must. While zinc electroplating creates a protective barrier, passivation enhances this effect by reducing chemical reactivity on the surface, ensuring long-term durability.

  • Rack line: 1.100kg/hour
  • Barrel line: 1.000kgTon/hour
  • High quality blue passivation: Chromium (III) nitrate, di-Sodium oxalate, Cobalt dinitrate, Malonic acid, Oxalic acid
  • Cr6+ free

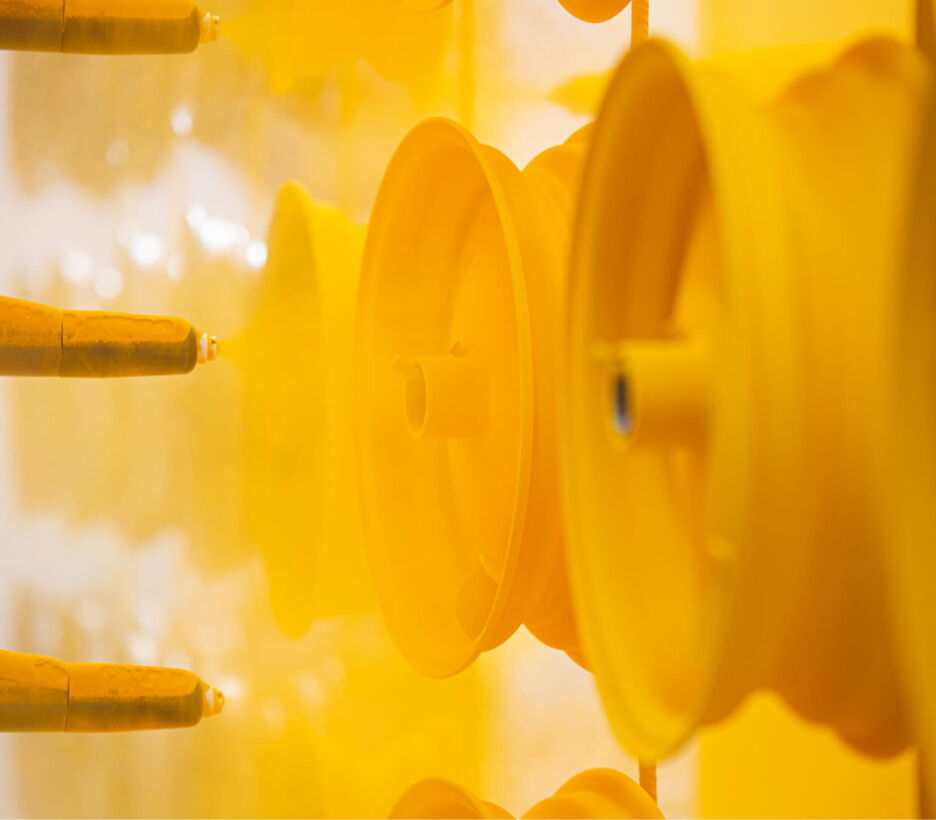

Powder coating

Our powder coating service enhances your product with a superior finish, offering better durability, corrosion resistance, and aesthetic quality compared to traditional painting. It's an eco-friendly process, emitting negligible volatile organic compounds (VOCs).

  • Powder type: polyester, epoxy-polyester
  • Finish:  gloss, semi-gloss, matte
  • Maximum workpiece dimension: 1500X800X700

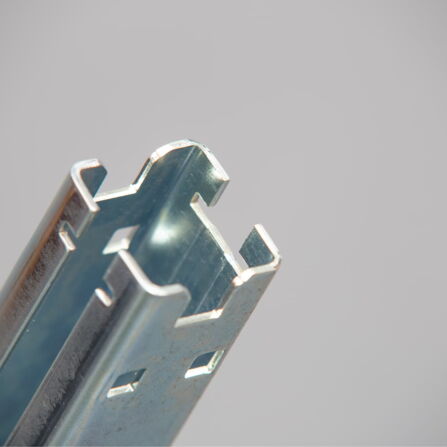

Trimming, rolling and curling

Trimming involves removing a small amount of material from the edge of a sheet metal workpiece to achieve a clean, uniform edge.

Curling involves rolling the edge of a sheet metal component into a cylindrical or conical shape. Curling enhances the strength, rigidity, and aesthetics of the component, and it can also provide a protective barrier against sharp edges.

  • Trimming setups:  6
  • Curling setup: 1

Excellence in Every Detail: Quality Is Not Taken for Granted

Choosing LIV means choosing thoroughly tested, inspected, and overall checked products. We don’t want to leave anything to chance, therefore we implemented strict processes to make sure every detail is thoroughly checked. Our experienced team is monitoring every step of the process to make sure every product more than satisfies your needs.

Excellence in Every Detail: Quality Is Not Taken for Granted
Excellence in Every Detail: Quality Is Not Taken for Granted
Excellence in Every Detail: Quality Is Not Taken for Granted
Excellence in Every Detail: Quality Is Not Taken for Granted

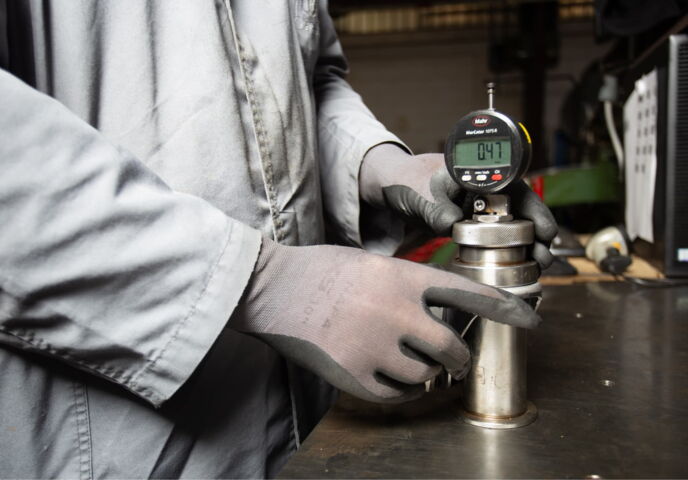

Quality Assurance

Quality is not a word we take lightly - it’s our commitment and part of our culture. During the course of the years, we enforced fail-proof quality checks at every stage of production, ensuring each product meets strict standards and exceeds your expectations on all levels.

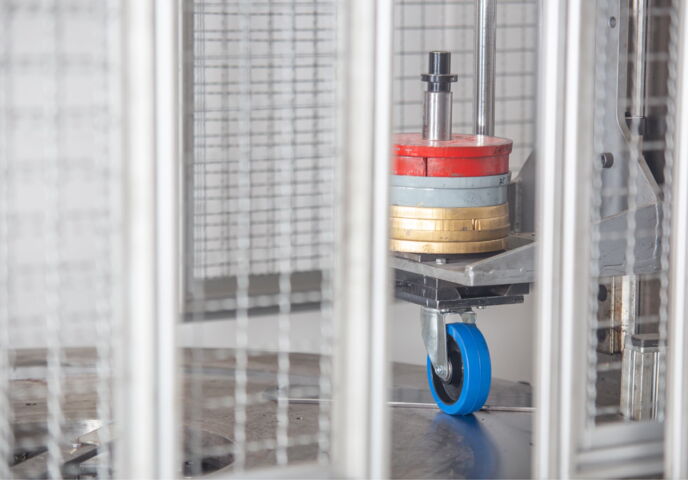

Testing

To guarantee and maintain our impeccable excellency, we’ve developed extensive testing procedures so we can validate product durability, strength, and overall quality. Our techniques mimic real-world conditions, both indoor and outdoor, so every product which leaves our facilities meets stringent safety and durability standards.

  • Testing setups for testing according to different required standards (EN-840-5, RAL 951/1, etc.)

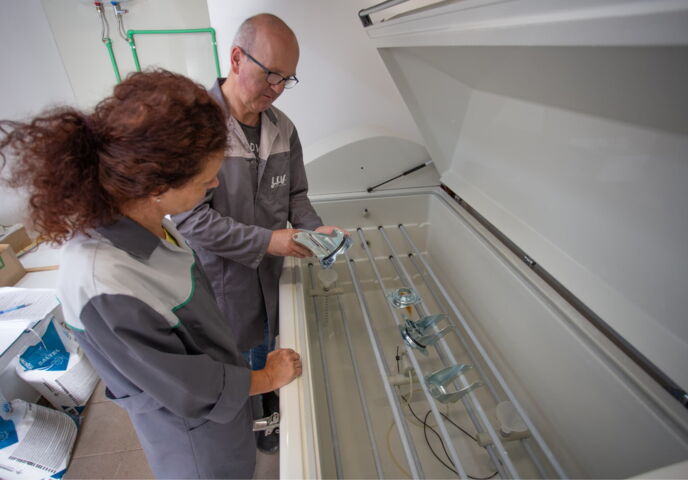

  • Salt spray chamber (ISO:9227)

Simulations

One of the crucial steps before sending newly developed products into physical production, is our virtual simulation. Simulation helps predict real-world performance, allowing for necessary adjustments and fine tuning. This inevitable step ensures reliability, cost-efficiency, and adherence to performance criteria.

  • Finite Element Method Analysis
Research & Development
CAD Models
3D Scanning
Reverse Engineering

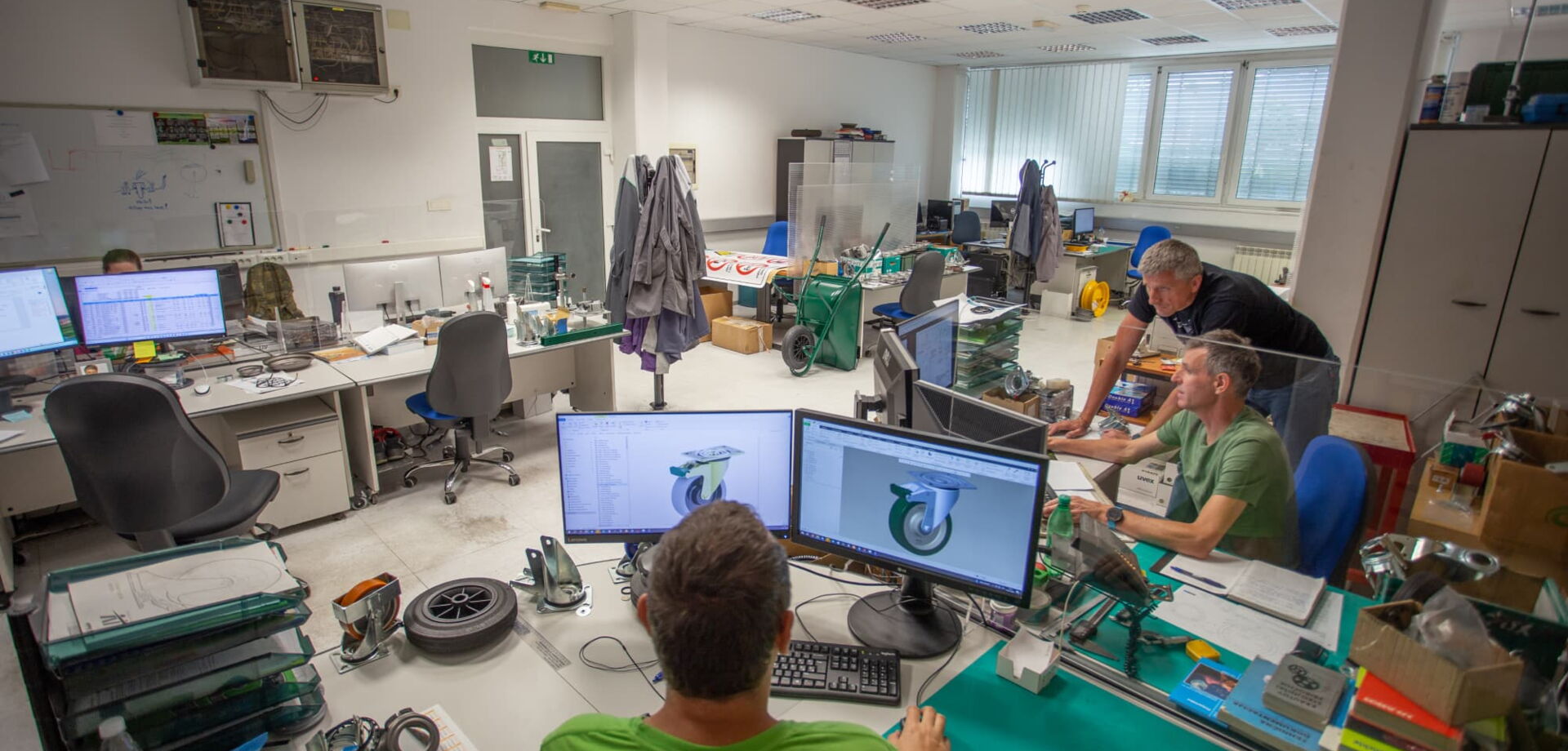

Research & Development

Our Research & Development team is the creative force behind custom solutions, constantly innovating to improve product efficiency, cost-effectiveness, and unique client requirements. Their expertise is vital for pioneering solutions in our field.

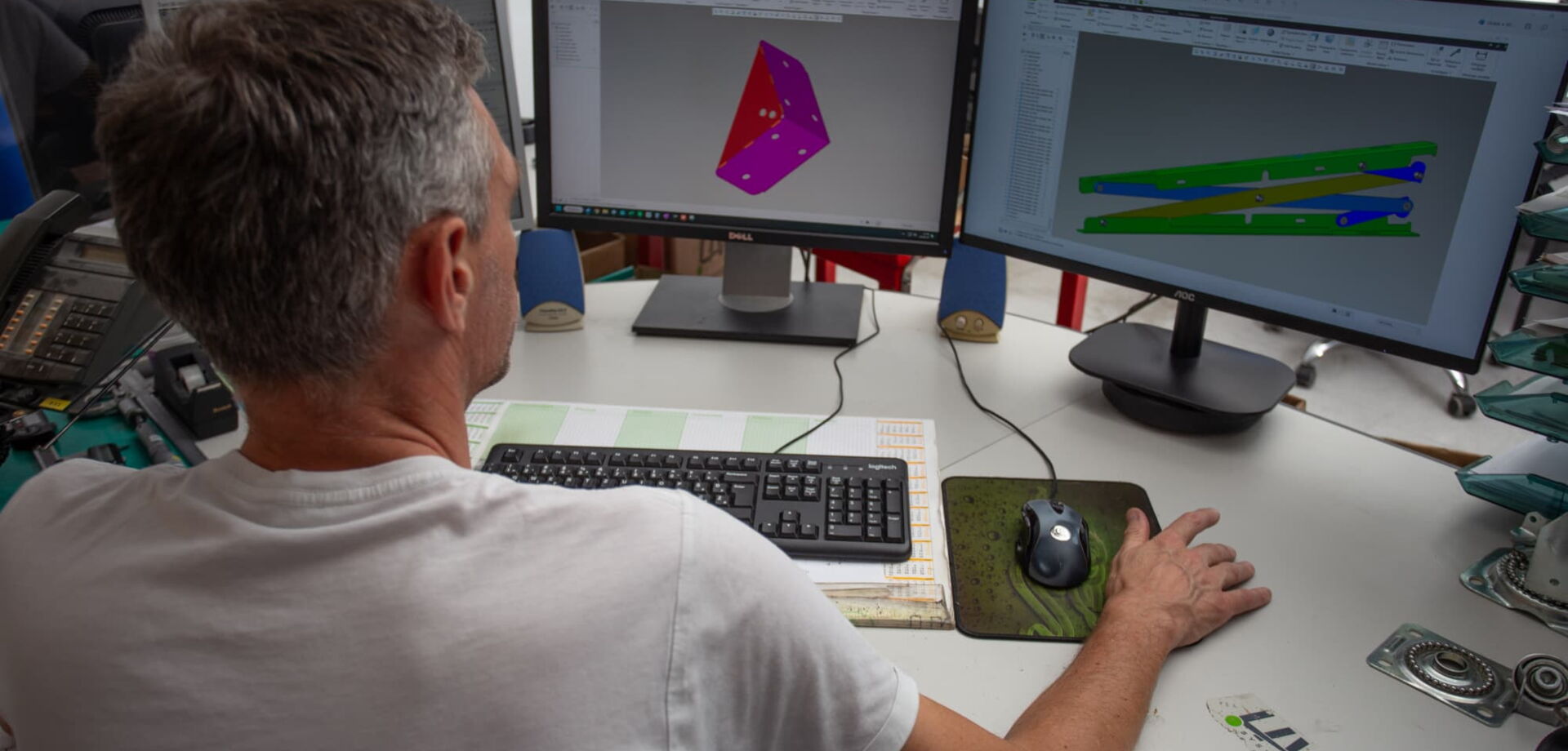

CAD Models

We utilise advanced CAD software to create detailed 3D models, allowing precise design, analysis, and modification before production. This technology ensures product precision, quality, and accelerates the development process.

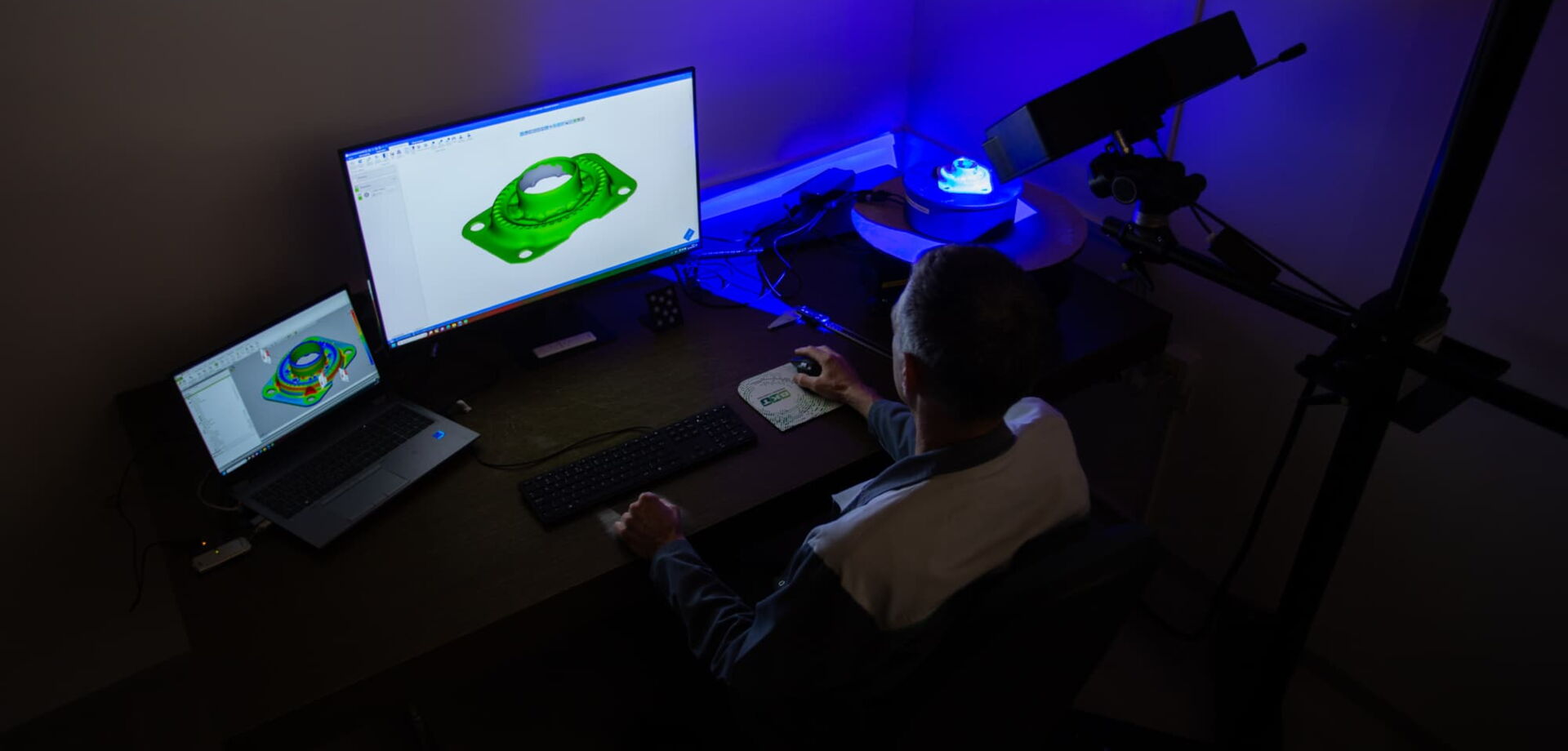

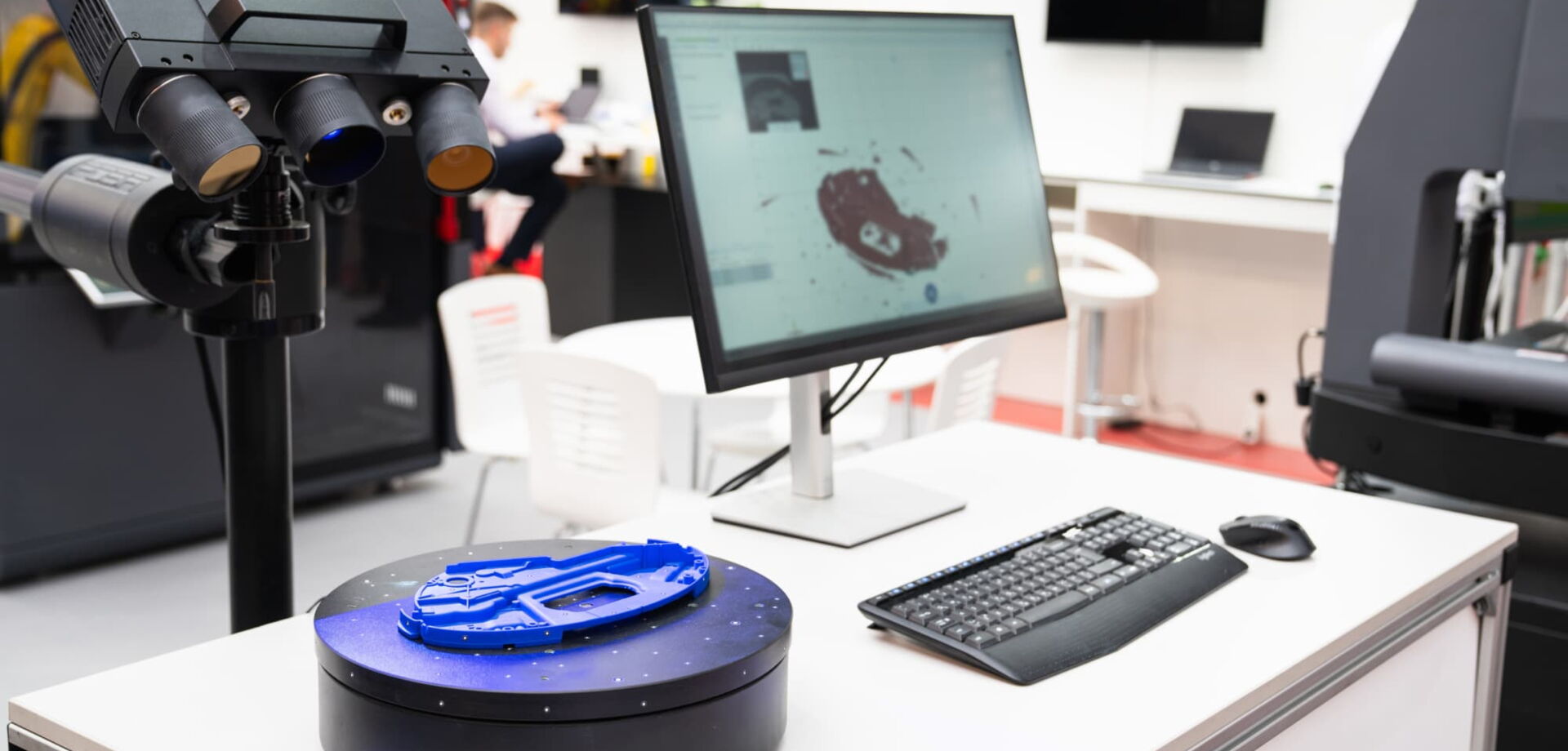

3D Scanning

Employing cutting-edge 3D scanning technology, we capture precise dimensional data for objects, aiding in quality control, reverse engineering, and product development. This non-contact, non-destructive technology ensures comprehensive and accurate data capture.

Reverse Engineering

Our reverse engineering capabilities allow us to dissect and analyse competitors' and original components for improvement or replication. We reconstruct detailed, comprehensive documentation and designs, promoting continuous product evolution and improvement.

Your Partner in Precision with Deep Operational Expertise

1

Step 1

Your Idea

First step starts with you. Present us your idea, desired quantities, timeline, and we will take over from here. We will go to the drawing board and make CAD CAM design so we can all visualise your future products and fix potential issues that come to our attention.

2

Step 2

Prototype

When CAD CAM design is completed and confirmed, we get everything ready to prepare a prototype. Once we set up a laser, we cut out the prototype and see if it follows your requirements.

3

Step 3

Prototype confirmation

Next step is prototype confirmation and correction of any issues we might stumble across.

4

Step 4

Tooling concept and production

After greenlighting the prototype, we start preparing tooling and production concepts. We need to engineer the entire flow to be time, energy, material and cost effective.

5

Step 5

Trial series production / validation

We are almost there! When production is set, we make a few trial series to check if everything is according to our plan.

6

Step 6

Serial production

The end of R&D is the beginning of the serial production. Your products are now being manufactured with full speed!

Are You an OEM Seeking a Supply Of Precision-Crafted Metal Products?

Find your solution

01

I Need a New Product

I’m seeking a skilled partner to turn my ideas into high-quality, custom-engineered metal parts.

02

I need Improvement of an Existing Product

I’d like to improve my existing products with the help of experienced R&D services, implementing improvements to new specifications and industry requirements.

03

I’m Looking for a Supplier

I need a reliable partner who can provide affordable, superior metal components with fast and dependable deliveries.

Experience the LIV Systems’ Full Service!

Comprehensive In-House Capabilities

LIV System can offer you basically any metal shaping and surface treatment solution under one roof.

Unmatched Quality and Precision

We heavily invest in maintaining impeccable quality. We work with advanced machinery, follow strict production and testing protocol, all orchestrated by our excellent, experienced experts.

Cost Efficiency

Every process is fully optimised in order to save time, energy, material and other resources needed to complete your order.

Custom Solutions and Flexibility

Since we are very flexible, we can prepare custom solutions very quickly, and can move from the initial idea to final products in a matter of weeks.

Advanced Technology and Innovation

Our technology is a perfect symbiosis between our valuable machinery and priceless team. We follow the latest innovation in our field and are always early adopters of new technologies that can influence every aspect of our work.

Experienced and Dedicated Team

Our knowledge, skills and experience can utilise everything modern technology got to offer, to ensure durable, aesthetical, and cost-effective products to every client.
